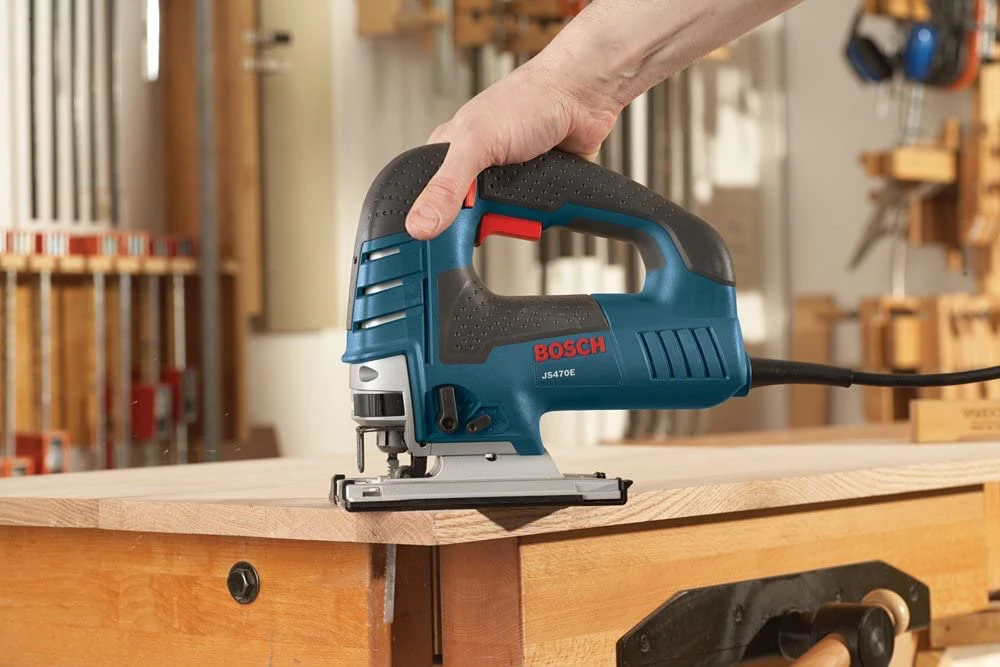

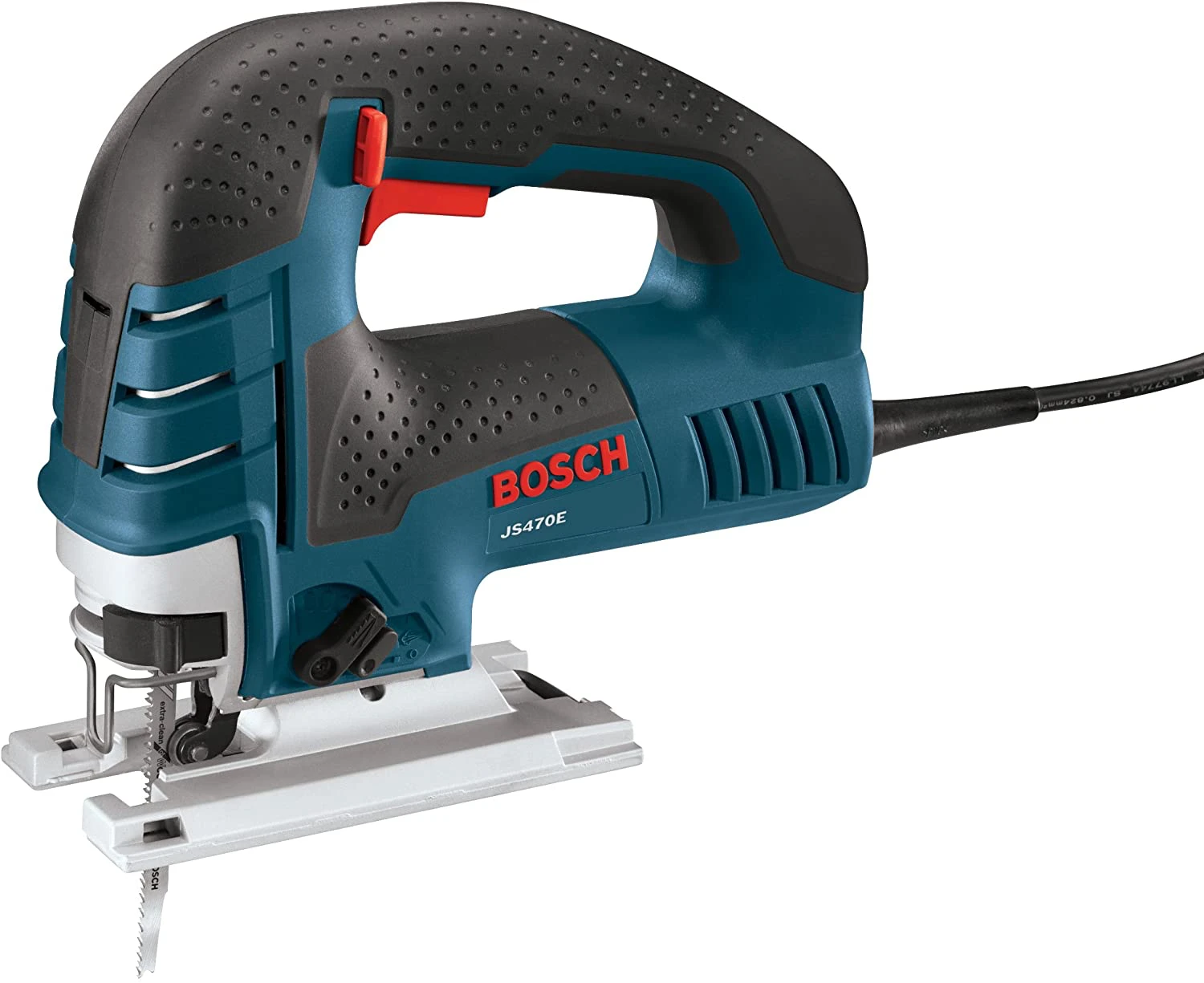

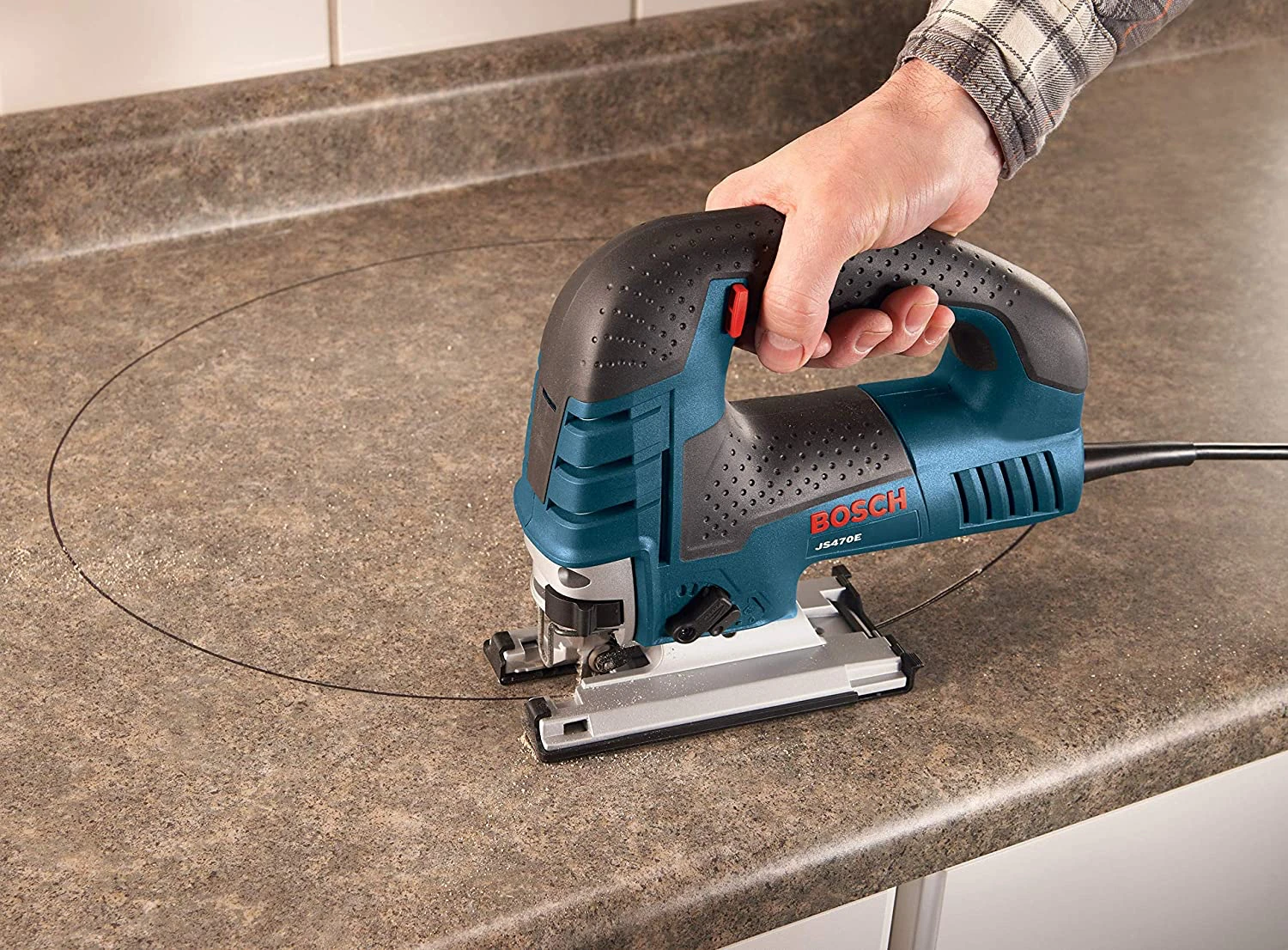

Bosch JS470E Jig Saw

Top Handle Kit

The JS470E top-handle jigsaw delivers 7.0 amps of power – the highest jig saw power rating on the market. Constant Response circuitry maintains the desired speed for consistent performance, and a precision-machined plunging system and low-vibration design contribute to the cutting accuracy and smooth operation.

Standard Equipment:

• JS470E Jigsaw
• 1 Jig Saw Blade
• Anti-Splinter Insert
• No-marring Overshoe
• Carrying Case

Optional Accessories:

• Jigsaw Blades

Specifications:

• Rating: 120V AC
• Amperage: 7.0
• Stroke Length: 1″
• No-load SPM: 500 to 2,800
• Cutting Capacities…
  Soft Wood: 5-7/8″
  Mild Steel: 3/8″
  Aluminum: 7/8″
• Max Bevel Cut: 45 Degrees
• Weight: 5.9 lbs
• Length: 10″

Features:

• Aluminum gearbox with insulated cover.
• Toolless Blade-Change System – Fast insertion, blade ejection lever eliminates need to touch hot blade. Most secure jigsaw clamping system.
• Ambidextrous lock-on button – For steady long cuts and user comfort and control.
• Variable speed – Dial sets maximum speed and accelerator trigger controls operating speed.
• Large, sturdy die-cast foot with steel insert and on-board bevel wrench.
• Powerful 7.0 Amp Jigsaw – Top jigsaw amp rating.
• Exclusive multi-directional blade clamp provides superior grip of T-shank blades.
• Internal Precision Control – Precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation.
• Constant Response circuitry – Maintains desired speed for consistent performance and precision.
• Four orbital-action settings -Different blade strokes for smooth to aggressive cuts.
• Adjustable dust blower keeps cutting line clear.
• Ergonomic top handle with soft-grip areas for solid, comfortable grip.
